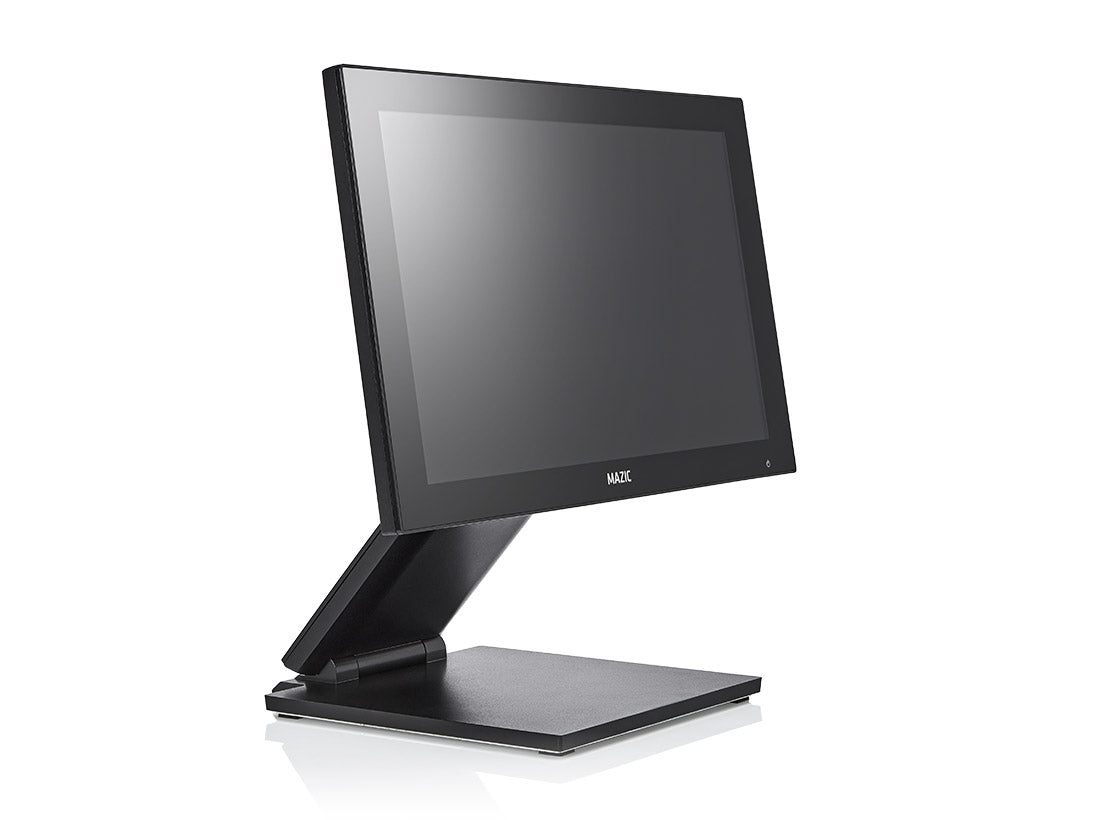

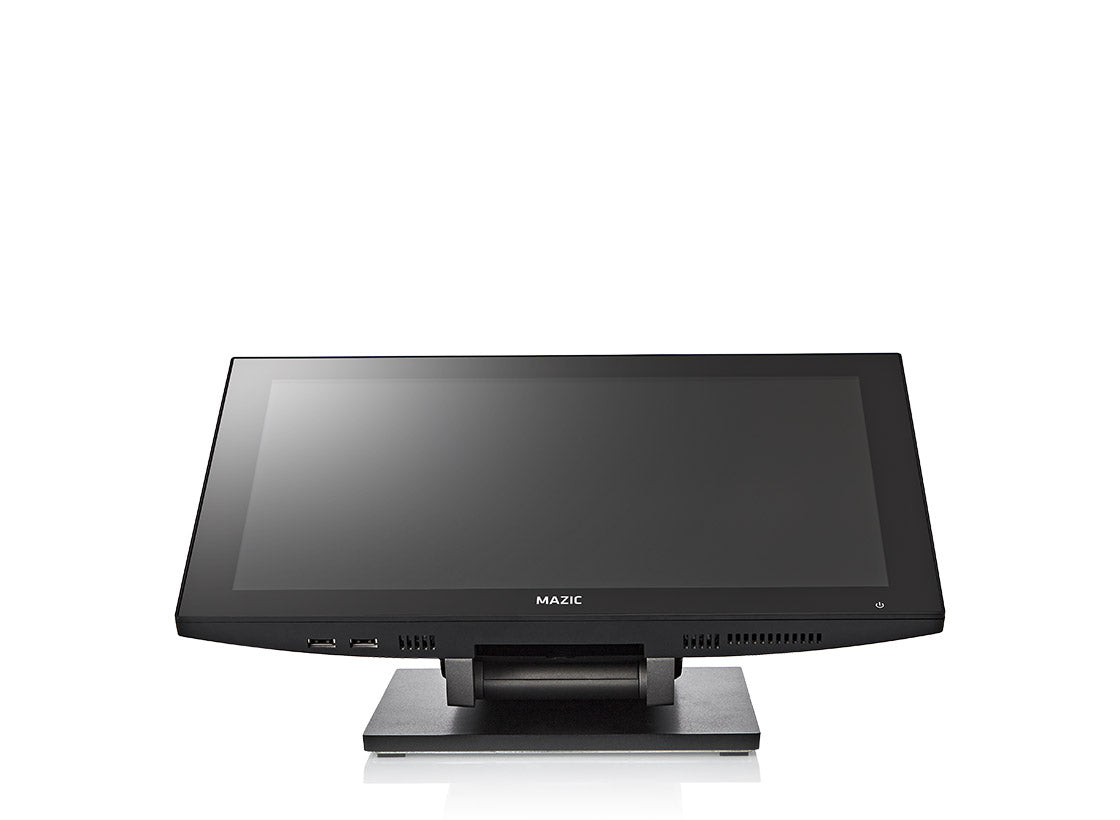

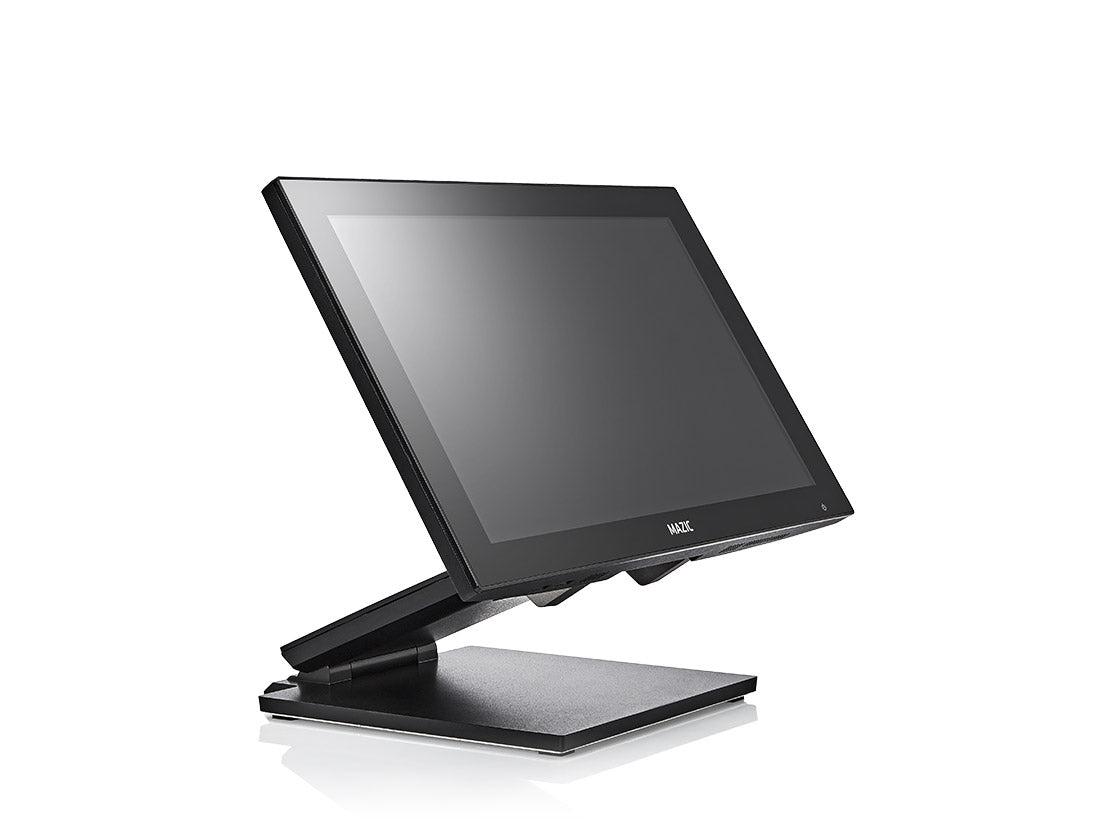

POSBANK POS Machine Mazic 1560 (i5, 8GB, 256GB, 15.6 FHD Display)

Download PDF Specification Sheet

Main features
15.6" elegant LCD display with best in class resolution
Elegant and robust aluminium structure
Easy and fast maintenance
Capacitive touch screen
External I/O box
Maximum flexibility and high performance

Modern elegance
This top of the range model has a solid die-cast aluminium structure that offers great versatility during installation and use. Together with variable orientation of its 15.6 inch display, Mazic offers excellent display viewing angles whilst maintaining a compact and modern design. The utilisation of a waterproof LCD touch display with top of class luminance further elevates the quality of this design.

Suitable for every setting

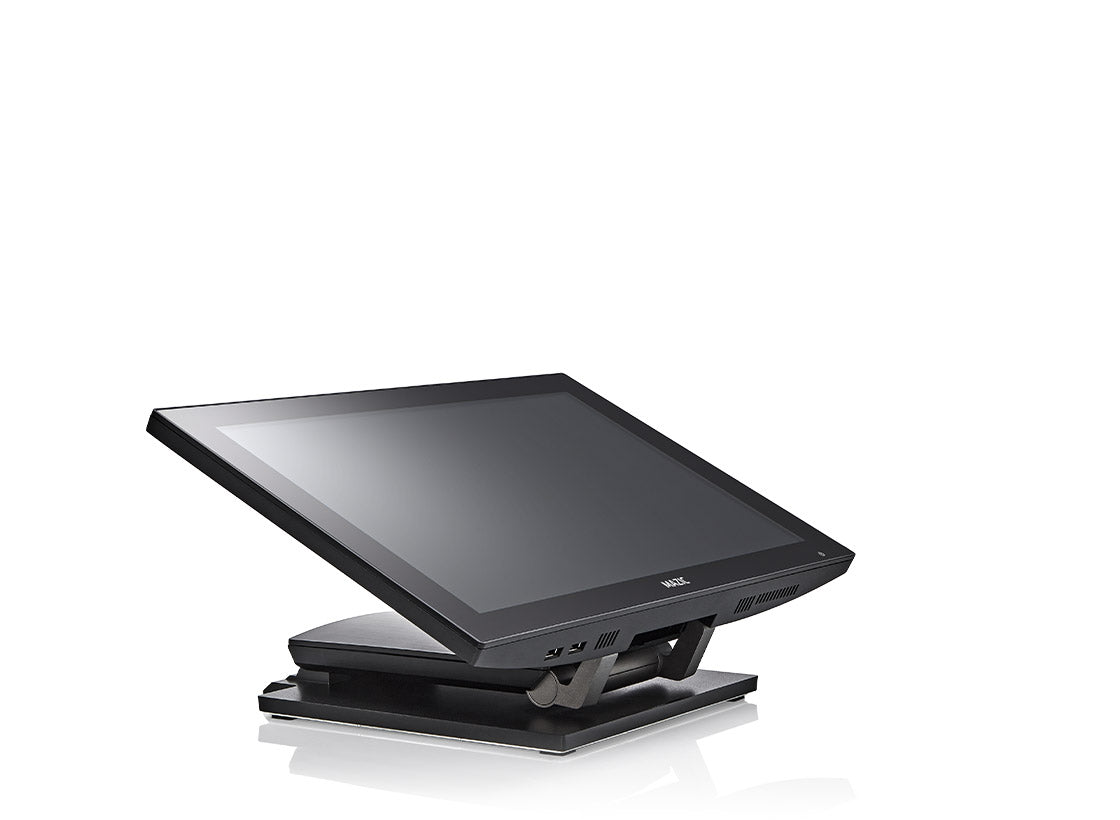

Thanks to its foldable structure, Mazic POS terminal can be installed in every retail setting. Thanks to its robust dual hinge design, both height and viewing angle can be adjusted ensuring maximum usability and flexibility. Its compact foldable design requires less space during shipping resulting in freight cost savings.

Maximum Reliability
The unique, swappable CPU system box simplifies maintenance and upgrade operations as much as possible whilst providing greater efficiency in inventory management and after sales service. This swappable design guarantees reliability and longer life-cycles. Its compact foldable design requires less space during shipping resulting in lower freight and RMA cost.

Configuration
POSBANK MAZIC™️ AP-1560 POS Terminal
Intel®️ Core™️ i5-1235U Processor 12M Cache, up to 4.40 GHz
Intel®️ Alder Lake-P Chipset
8 GB RAM Standard, DDR4 3200 MT/s, 1 x SODIMM Socket, NVMe M.2 2242 256 GB Storage
15.6" FHD TFT LCD, LED Backlight, Projected Capacitive Touch, AF
Resolution: 1920 x 1080, 300 cd/m² (typ.) Brightness
9 (Rear 9, USB 3.0 x 2,USB 2.0 x 6, USB C type x 1)
3 (Reserved for MSR, SCR, i-Button/Touch Controller)
Power Supply: Adapter 12V, 5A (Normal)
Multiple I/O Interfaces for Peripherals
Foldable & Scalabale POS, Made in South Korea
3 years warranty
